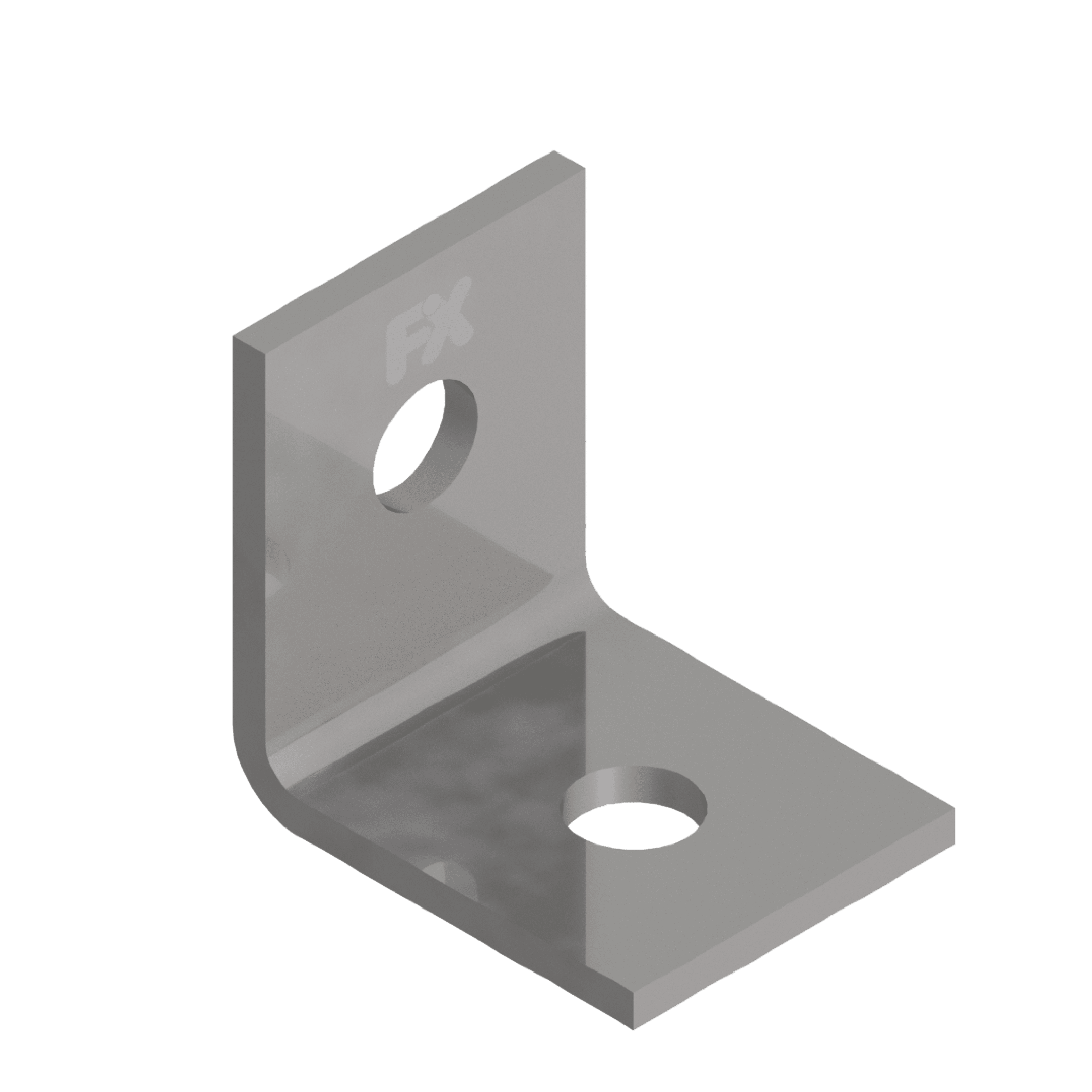

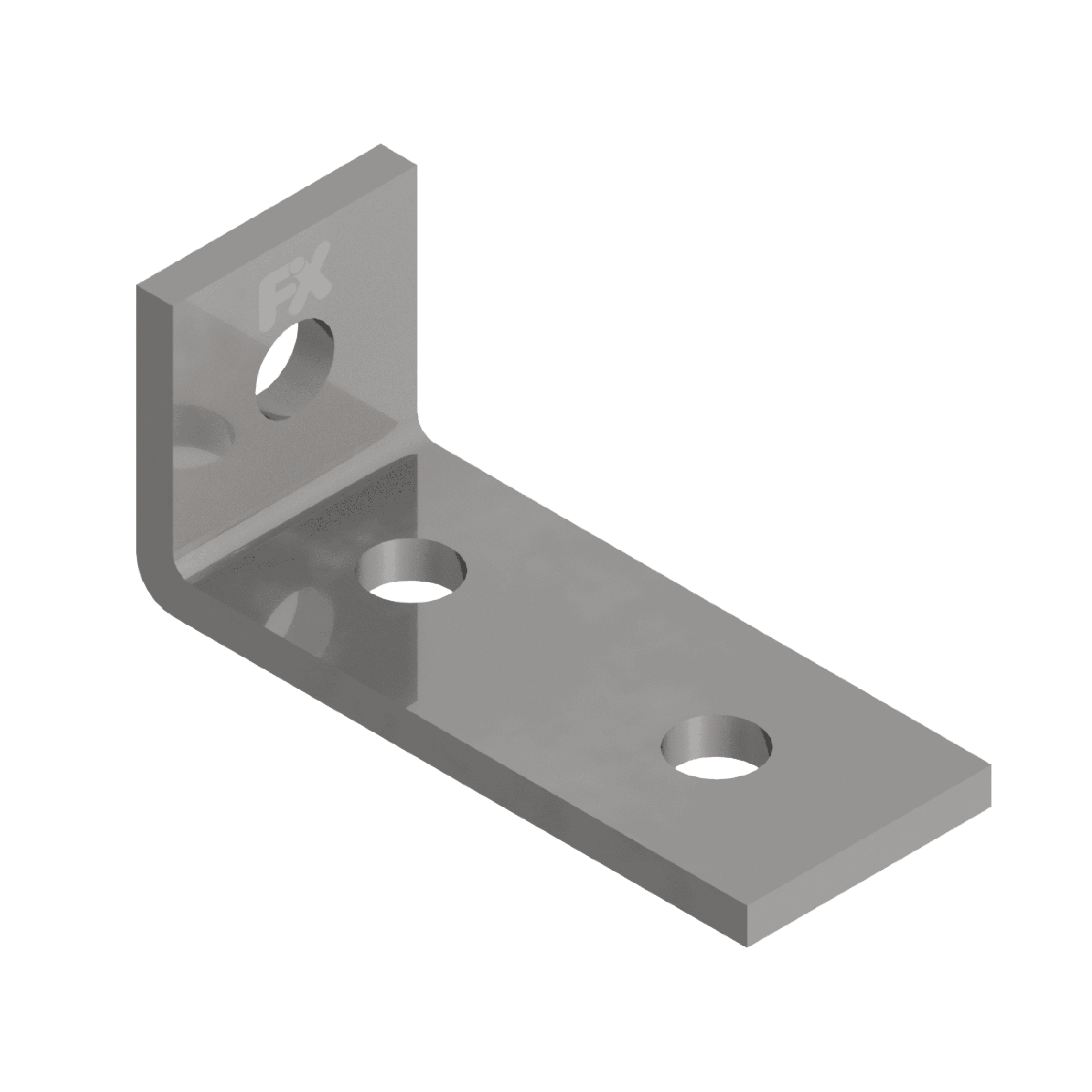

October 28, 2023FXR Mounting Angle 90
₹10.00
Connection element for 90° connections of FXR Mounting Rails
SKU: N/A
Categories: Connectors, Electrical Feature, FXR Mounting Rail Accessories, HVAC Featured, Multiple Service Feature
Article code :
Description :
Surface Finish :
Application
- Building frame structures using FXR Mounting Rails
- Structural connection of FXR Mounting Rails
- Connecting FXR Mounting Rails at right angles
Features & Benefits
- Quick and efficient connections of multiple support structures
- Creation of rigid structures without welding
- High load bearing capacity owing to special material properties and design.

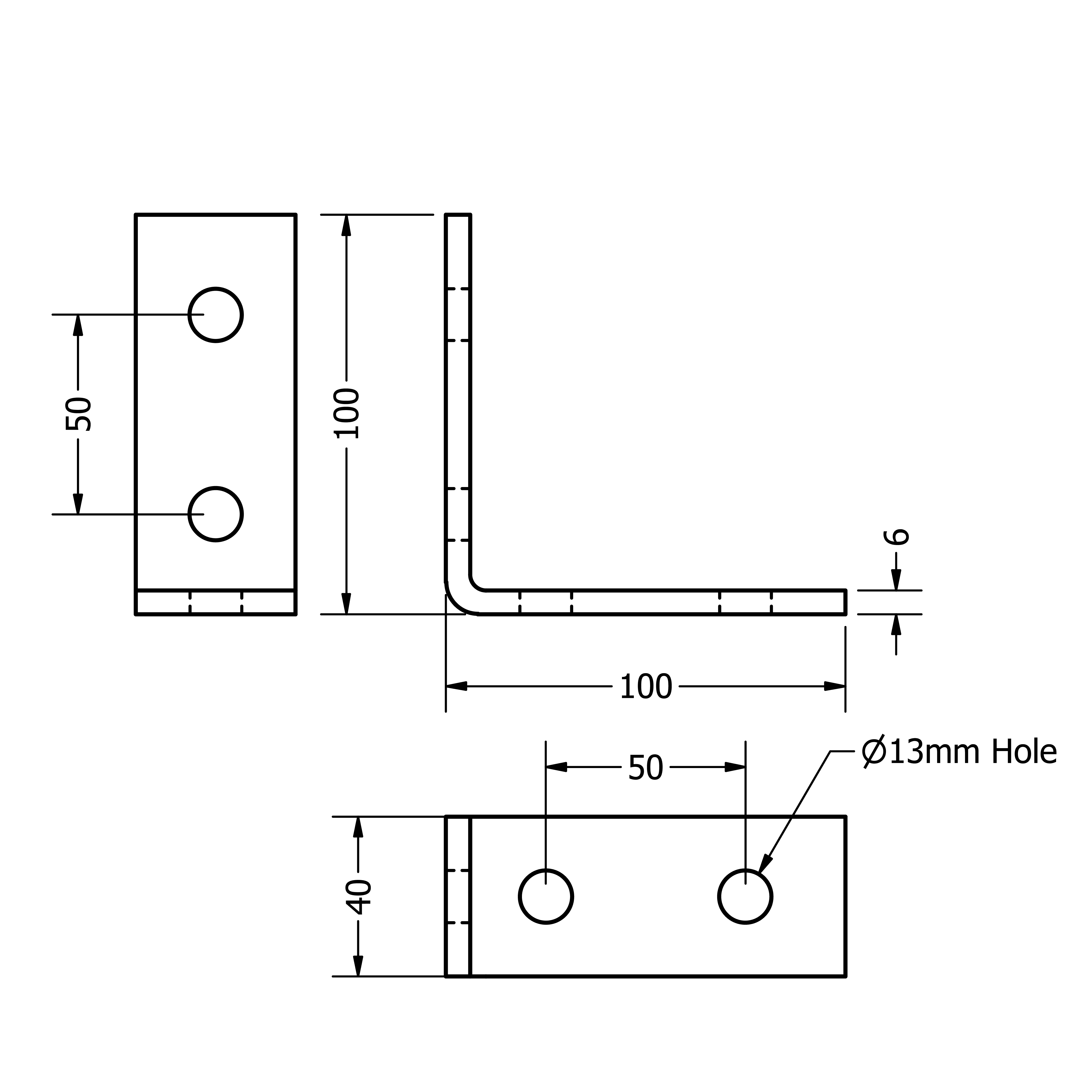

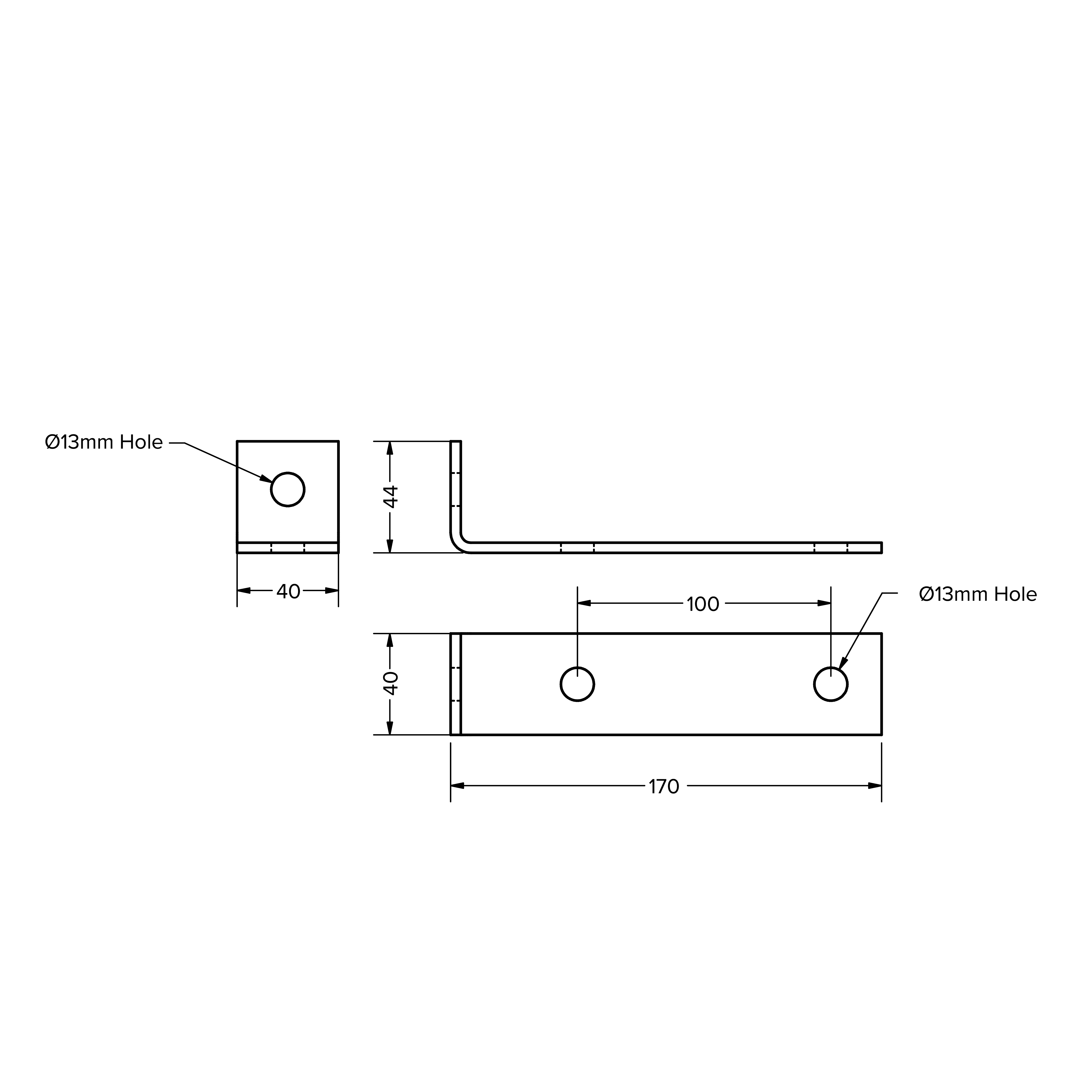

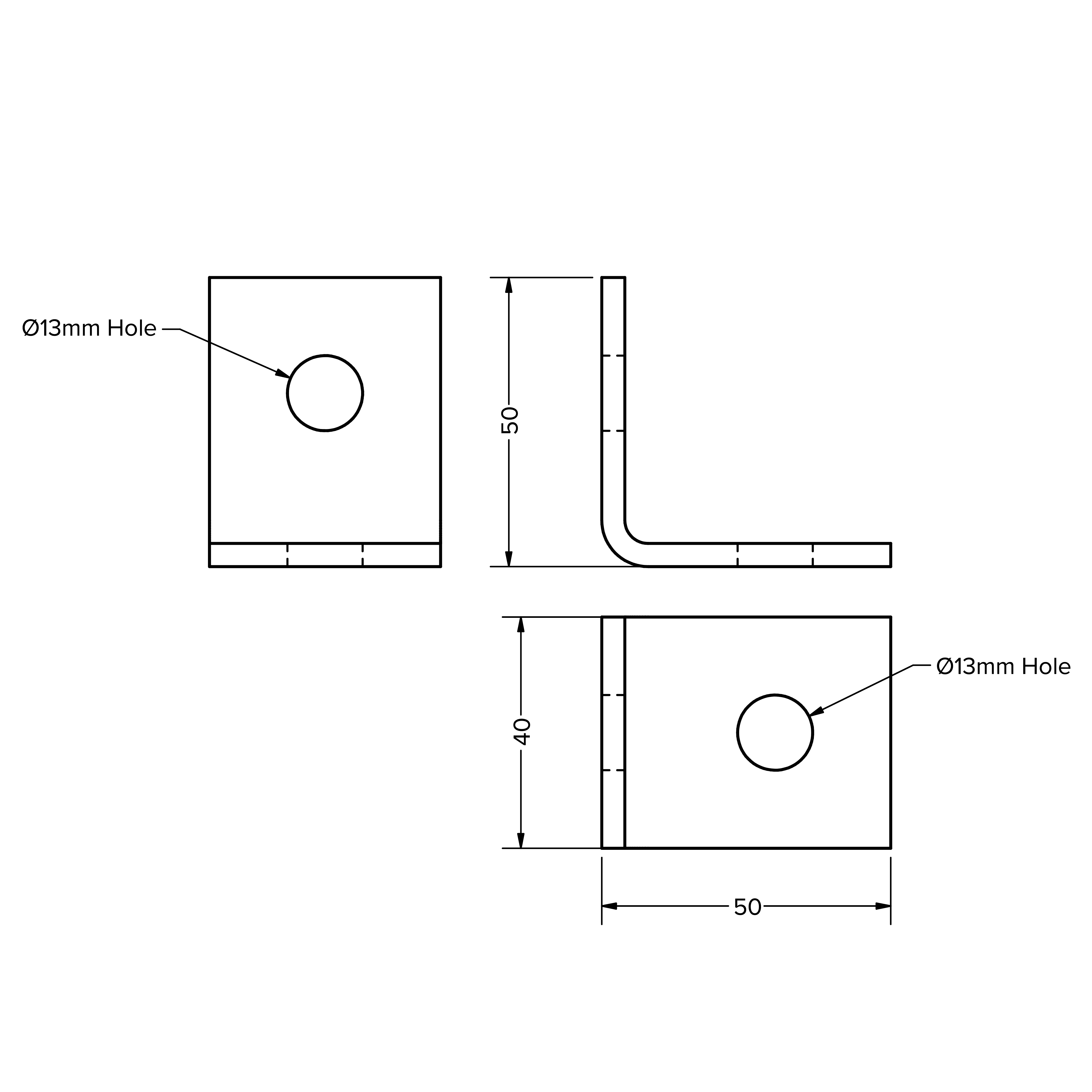

Profile | (1+1), (2+1), (2+2) |
---|---|
Design | (1+1), (2+1), (2+2) |
Angle | 90° |
Surface Finish | Galvanized, HDG |
Material Specification
Material | S235 JR or equivalent steel |
---|---|
Coatings | Galvanized, Hot-Dip Galvanized (HDG), Powder Coating*, Zinc Magnesium* |
